MVHR

OERRE GHOST

POA

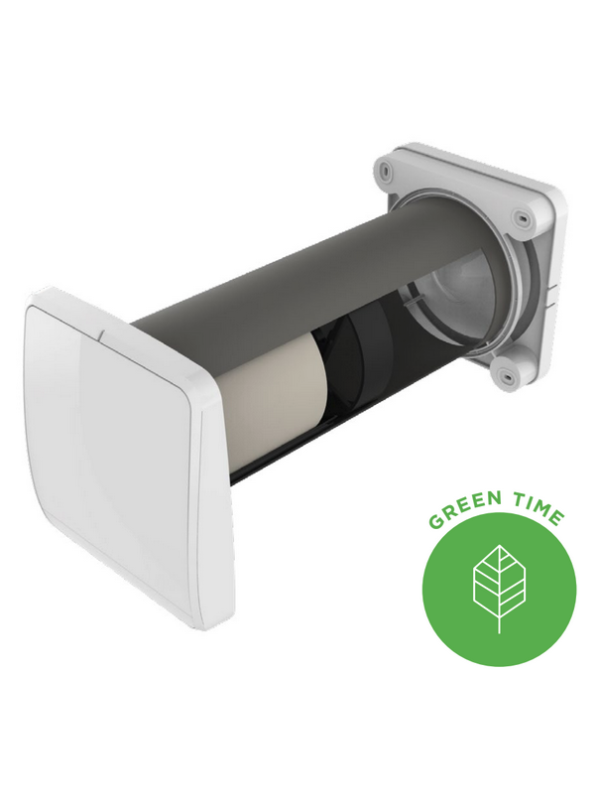

DECENTRALIZED HEAT RECOVERY UNIT ALTERNATE FLOW

Need help before you buy?

If you’re not sure which products you need, or are interested in setting up a trade account for a tailored package, please get in touch. We offer:

  • No-obligation product demonstrations

  • Guidance on implementing effective drug and alcohol programmes

  • Fully serviced trade accounts with training included

GET IN TOUCH

Description

  • Motor housing placed inside the wall behind the heat exchanger to make the product highly silent (only 160);
  • High efficiency heat exchanger (up to 93%) made of ceramic material;
  • Made of long life, high quality finest materials, with elegant design.
  • Front cover in ABS;
  • Tilting opening system of the front panel to prevent ingress of air when the fan is OFF;
  • External grille made of ABS specifically designed to reduce the outside noise;
  • Standard duct lenght 500mm. 700mm lenght available on request 250mm minimum wall depth for 160 and 200mm for 100 - 3mt maximum wall depth (2,5mt in case of 90° curve);
  • DC ball bearing motorimpeller, brushless with electronic commutation;
  • Long life and low energy consumption;
  • Easy cleaning and maintenance;
  • Double dust filter, washable and easy to access;
  • IPX4 protection degree;
  • Led indicator for functions and filter cleaning;
  • Humidity and twilight sensors (active and wireless versions);
  • The last set function is saved and automatically restored in case of interruption of the power supply;
  • Caps for pipe in case of future installation in the construction site;
  • No condensation drainage required;
  • Working Temperature Range: - 30°C + 50°C.
  • Possibility to change standard filters with optionals (only 160)
  • 3 versions: GHOST BASE (base version) - GHOST ACTIVE (wiring connection) - GHOST WIRELESS (wireless connection) - APP (wifi connection).
  • POSITIONING: Ghost has been projected to be installed in the main premises of the house (living room, bedroom,...). Ghost base version can be installed as one unit even if the highest efficiency can be reached by installing two units. By selecting Ghost Active and/or Ghost Wireless versions in fact, thanks to the technology of synchronization, two or more products communicating each others can be installed.

Features

BASE version’s main technical features:
  • ON/OFF and 3 speed switch, possible to control by remote, base remote control included.

ACTIVE version’s main technical features:
  • Wire connection between the units;
  • Remote control with display (accessory sold separately);
  • Integrated humidity and twilight sensors which allow several automatic functioning modes (see remote control);
  • Up to 16 units communicating in sequence in the same system in master/ slave mode, through easy dip switches configuration;
  • 3 adjustable speeds (plus night version)

WIRELESS version’s main technical features:
  • Wireless connection between the units;
  • Remote control with display (accessory sold separately);
  • Integrated humidity and twilight sensors which allow several automatic functioning modes (see remote control);
  • Up to 16 units communicating in sequence in the same system in master/ slave mode, through easy dip switches configuration;
  • 3 adjustable speeds (plus night version)

APP version’s main technical features:
  • Wi-fi communication 2,4Ghz between the units;
  • iOS and Android Apps;
  • Possibility to configure the entire system automatically;
  • Connection to weather stations to monitor the temperature humidity and air quality parameters of the outside air;
  • The integration of humidity, twilight, temperature and air quality sensors can monitor the indoor parameters in order to automatically guarantee a high level of living comfort;
  • Possibility to manage different systems and different houses;
