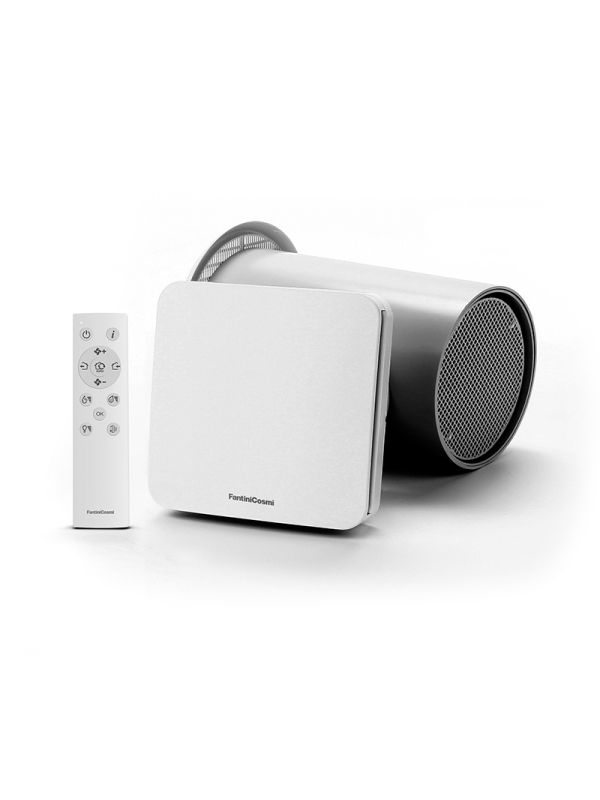

- ECOCOMFORT PLUS 160 (Full Kit)
MVHR
ECOCOMFORT PLUS 160 (Full Kit)
£399.00
Ex. VAT
SINGLE ROOM HEAT RECOVERY UNIT
Need help before you buy?
If you’re not sure which products you need, or are interested in setting up a trade account for a tailored package, please get in touch. We offer:
No-obligation product demonstrations
Guidance on implementing effective drug and alcohol programmes
Fully serviced trade accounts with training included
Description
ECOCOMFORT PLUS is a ventilation system that allows you to always have a change of clean air in indoor environments, without the need to open the windows, also preventing the formation of humidity and mould. A high-efficiency regenerative ceramic heat exchanger, placed inside the unit, accumulates the heat released by the air flow extracted from the room and returns it by heating the air during the intake cycle, thus recovering the output heat and avoiding energy waste.ECOCOMFORT PLUS is equipped with an ISO COARSE efficiency class filter which retains any impurities from the air released into the environment and a low consumption brushless DC motor controlled by a microprocessor which processes the information from the sensors present on the unit: temperature, VOC (Volatile Organic Compounds), humidity and light brightness. All these sensors allow the unit to adopt the most suitable ventilation modes automatically and ensure the best environmental comfort. The remote control allows a simple and immediate use by the end user. Infrared (IR) technology allows immediate communication with the device and the user can easily manage the sensors with which the unit is equipped and obtain information regarding the current operating mode. Both the end-user and the installer can choose the desired comfort thresholds, while looking at the current functions on the device frontal coloured LED.
A multi-zone system is feasible with the installation of more ECOCOMFORT PLUS, using a single IR remote control.
ECOCOMFORT PLUS is available in 2 diameters (100mm and 160mm) and has to be installed on the perimeter wall, without additional accessories or further settings.
Features
FEATURES- Body made in antistatic ABS plastic; Operating temperature -20 ° C to 50 ° C;
- Compact dimensions and easy to install;
- Telescopic body to fit every wall thickness;
- External grille easy to install either from indoor or outdoor;
- ISO Coarse filter;
- Flow rectifier to grant higher performances, only for 160mm models (AP19993);
- Infrared (IR) remote control
- LED signaling in the lower part of the front body;
- Temperature, VOC air quality, humidity and twilight sensors;
- In compliance to UE Reg. 1254/2014
KIT AP19993 and AP19989 include:
- Ventilation unit complete with heat exchanger, telescopic tube and external grille;
- IR remote control.
- Ventilation unit complete with heat exchanger, telescopic tube and external grille;
ACCESSORIES AND SPARE PARTS:
- Fan motor unit compatible with all ECOCOMFORT PLUS and ECOCOMFORT RF models;
- External air inlet/exhaust terminal with rainproof and windproof grille;
- ISO Coarse filter
- IR remote control
HEAT RECOVERY UNIT
- Ventilating unit with DC Brushless motor;
- PVC shockproof telescopic body;
- Ceramic heat exchanger with efficiency >90%;
- Cross-linked polyurethane filter, ISO Coarse filtration class according to EN799;
- Flow straightener to ensure higher performances, only for version with 160 mm diameter (AP19993);
- Power supply 110V ÷ 230V~ 50/60Hz;
- LED signaling in the lower part of the front body;
- Temperature, VOC, humidity and brightness sensors;
- Splash proof protection class: IPX4.
INFRARED REMOTE CONTROL
- Simple and functional 12-key keyboard;
- Infrared technology for even faster communication with the device;
- Functional feedback via signaling LEDs in the lower part of the front body;
- Compatible with all devices of the ECOCOMFORT PLUS series;
- Power: 2 AAA batteries (not supplied);
- Protection degree: IP40;
- Battery life: > 24 months.
