MVHR

ASPIRVELO AIR ECOCOMFORT 2.0 SMART Series

POA

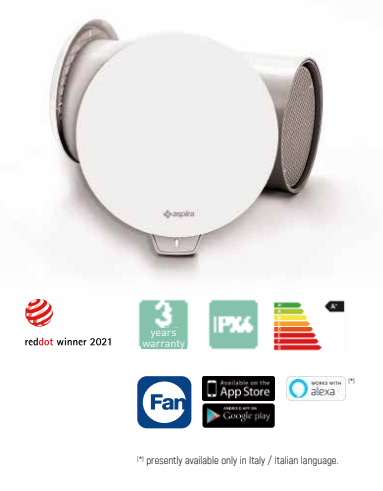

SINGLE ROOM HEAT RECOVERY UNIT WITH SMART FUNCTIONS AND ARTIFICIAL INTELLIGENCE

Need help before you buy?

If you’re not sure which products you need, or are interested in setting up a trade account for a tailored package, please get in touch. We offer:

  • No-obligation product demonstrations

  • Guidance on implementing effective drug and alcohol programmes

  • Fully serviced trade accounts with training included

GET IN TOUCH

Description

  • Nominal diameter Ø 160 mm
  • WIFI and Bluetooth Low Energy 5.0 multi-connectivity system
  • Air flow temperature, room temperature, relative humidity, brightness, air quality and VOC sensors
  • SMART functions
  • Setting and remote control by App
  • Mounting on outer walls
  • Suitable for rooms up to 36 sqm*
  • High efficiency generative ceramic heat exchanger up to 90%
  • Summer Free Cooling
  • Low noise level (D2mnTw) 40dB

ECOCOMFORT 2.0 SMART system consists of one or more decentralized ventilation heat recovery units at a very high efficiency, to be installed on the outer walls. The generative ceramic heat exchanger stores the heat coming from the exhausted air flow and releases warm air during the intake cycle, after going through a ISO Coarse filter, retaining the impurities.

Each ventilating unit is equipped with a DC brushless motor with low power consumption. Such motor is controlled by a microprocessor which automatically sets the speed modes according to the temperature, humidity, brightness, VOC and thanks to the commands coming from the Intelliclima+ App. These actions guarantee a better air quality and the best comfort to the user.

Minimum installing configuration is the “Master Unit”, that can be also connected to additional “Satellite units”.

ECOCOMFORT 2.0 SMART multi-connectivity system is integrated with the Intelliclima+ App, which can manage the ventilation system functioning, as well as the complete range of Fantini Cosmi programmable thermostats, with the aim to have an “integrated” Smart Home System.

Features

CHARACTERISTICS:
  • Plastics made in antistatic and anti UV ABS material;
  • Operating temperature -20°C ÷ 50°C;
  • Compact dimensions and easy to install;
  • Multifunction button with multicolor LED;
  • Telescopic body suitable for every wall thickness;
  • Folding external grille for internal or external mounting;
  • ISO Coarse class filters, according to UNI EN ISO 16890:2017;
  • Panel for acoustic, thermal and anti-condensation;
  • Flow straightener to guarantee higher performances.

AP19992 KIT INCLUDES:
  • Generative heat recovery unit;
  • External grille.

ACCESSORIES AND SPARE PARTS:
  • ISO Coarse class filters, according to UNI EN ISO 16890:2017 (AP1984);
  • Panel for acoustic, thermal and anti-condensation insulation (AP1985)
  • Windproof and rainproof grille(cod. AP1612);
  • Silencer Kit (cod. AP19881).
