Description

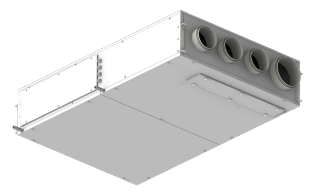

ASPIRCOMFORT PRO dH is a mechanical fan unit controlled with high efficiency heat recovery unit, air handling section with dehumidification and minimum cooling and heating integration. The unit is particularly suited for residential, commercial spaces or collective residential buildings and features plug-and-play for quick and simplified installation.

The unit is composed of a monoblock which includes every component for correct operation and allows operation with broad outdoor temperature ranges.

  • High efficiency counter current polypropylene exchanger >90%. Summer and winter mode.
  • Brushless plug-fans with electronic motor and modulating control. Very high efficiency and low noise levels. Compliant with directive Erp2018.
  • PM1 80% filters, easily removable on the outdoor air intake on the exhaust air. Easily removable coarse filters with low head loss on the recirculation air.
  • Double sandwich panelling, unit with external coating and internal galvanised finish. Galvanised sheet metal self-supporting perimeter structure.
  • Panel insulation is built with high performance 20 mm-thick insulation and adhesive polyethylene 6 mm-thick insulation.
  • Built with braze welded copper, complete with: High efficiency compressor, Filter dryer, finned coils, water exchanger, solenoid valves, lamination device, liquid receiver, high and low pressure switches and pipe thermal insulation.
  • Electric panel on-board the unit with microprocessor and dedicated regulation. Fan control, display of the temperature probes inside the machine, timed dirty filter control, recirculation and renewal air control. Unit control with these characteristics:
    • Management through CH193VMC remote panel with T/H/ sensor and integrated VOC
    • MODBUS RTU RS 485 communication

Features

FEATURES
  • Type of Fans: Backward blade radial - directly-coupled electronic motor - 0/10 V signal
  • Number of Fans: 2
  • Ventilation air flow rate: 154 (m3/h)
  • Integration air flow rate: 297 (m3/h)
  • Useful pressure: 100 (Pa)
  • Type of exchanger: Counter current plates - polypropylene
  • Number of Exchangers: 1
  • Recovery efficiency: 85.7%
  • Type of filters: Flat Filters
  • Filtration class: Coarse + PM1 + PM1
  • Sound power Lw generated by the structure: 62.2 dB(A)
  • Sound power Lw irradiated in the duct: 66.6 dB(A)
  • Average sound pressure Lp at 1m: 48.4 dB(A)
  • Average sound pressure Lp at 3m: 40.7 dB(A)
  • Power supply voltage: 230V / 1 / 50 Hz.
  • Absorbed current: 3.5 (A)
  • Protection rating: IP44
