MVHR

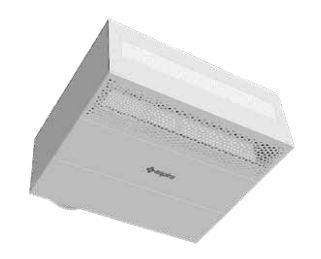

ASPIRCOMFORT CLASS 620H

POA

DECENTRALISED VMC UNIT WITH HEAT RECOVERY

Need help before you buy?

If you’re not sure which products you need, or are interested in setting up a trade account for a tailored package, please get in touch. We offer:

  • No-obligation product demonstrations

  • Guidance on implementing effective drug and alcohol programmes

  • Fully serviced trade accounts with training included

GET IN TOUCH

Description

ASPIRCOMFORT CLASS is a fan unit complete with heat recovery unit dedicated to air renewal without wasting energy.

The unit is particularly suitable for single rooms where ducted systems are not possible.

Thanks to its construction features and components, ASPIRCOMFORT CLASS 620H is able to reach recovery efficiency of more than 90%.

In the winter and summer seasons there is considerable energy recovery of the renewal air introduced into the room.

  • Self-supporting sheet metal frame with polyethylene insulated interior
  • Very high efficiency polypropylene cross flow counter current exchanger. Low freezing temperatures and operation down to -25°.
  • Brushless forward curved centrifugal fans with electronic motor and modulating control. Very high efficiency and low noise levels.
  • ePM1 70% filters with low head loss. Easily removable by removing the lower outer panels.
  • Free cooling inside the unit with generous air flow and damper with motorised actuator.
  • Control of 4 fan speeds, antifreeze, automatic bypass, temperature probes, post-heating coils and automatic dirty filter signal.
  • CH193VMC control panel mandatory for unit operation.
  • The unit is equipped with a power cable with Shuko plug.

Features

FEATURES
  • Type of Fans: Centrifugal blades forward directly-coupled electronic motor - 0/10 V signal
  • Number of Fans: 2 + 1
  • Air flow rate V3/V2/V1: 620 / 355 / 165 (m3/h)
  • Useful pressure: 15 (Pa)
  • Type of exchanger: Counter current plates - polypropylene
  • Number of Exchangers: 2
  • Recovery efficiency EN13141-7: 86.1%
  • Recovery efficiency EN308: 91.8%
  • Type of filters: Pleated Filters
  • Filtration class: 70% (ePM1)
  • Sound power Lw generated by the structure: 59 dB(A)
  • Sound pressure at 3 m V1 (low): 33 dB(A)
  • Sound pressure at 3 m V2 (average): 36 dB(A)
  • Sound pressure at 3 m V3 (high): 41 dB(A)
  • Sound pressure at 4 m V1 (low): 30.5 dB(A)
  • Sound pressure at 4 m V2 (average): 33.5 dB(A)
  • Sound pressure at 4 m V3 (high): 38.5 dB(A)
  • Power supply voltage: 230V / 1 / 50 Hz.
  • Absorbed current: 3.5 (A)
  • Power input: 340W
  • Protection rating: IPX0
  • Power consumption V3 with 15Pa pressure and clean filters: 165W
  • Width: 1040mm
  • Depth: 905mm
  • Height: 405mm
