MVHR

ASPIRCOMFORT 350 H

POA

Need help before you buy?

If you’re not sure which products you need, or are interested in setting up a trade account for a tailored package, please get in touch. We offer:

  • No-obligation product demonstrations

  • Guidance on implementing effective drug and alcohol programmes

  • Fully serviced trade accounts with training included

GET IN TOUCH

Description

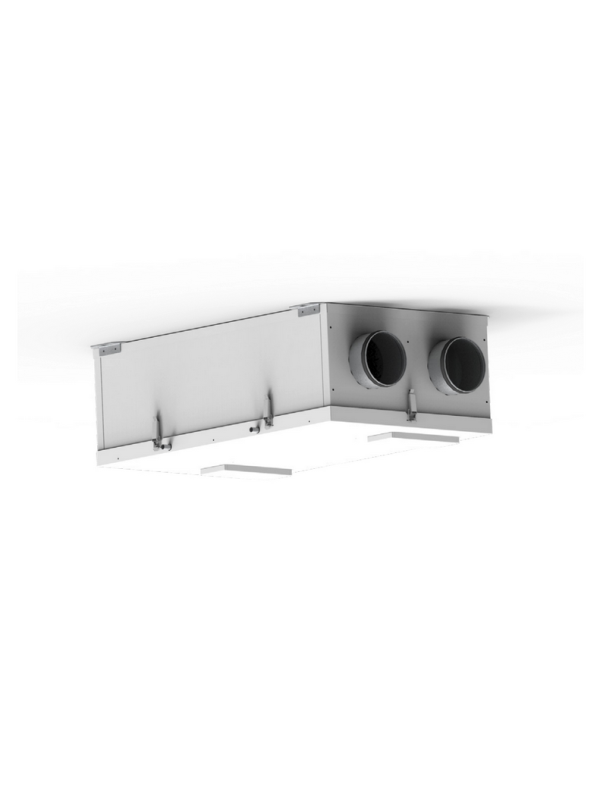

ASPIRCOMFORT H is a fan unit complete with heat recovery unit dedicated to air renewal without wasting energy.

The unit is particularly suited for single family units, flats and all cases where the rated air flow rates do not exceed 500 m3/h.
  • Heat recovery unit with high efficiency up to 90%
  • Horizontal installation
  • CH193VMC remote panel
  • Self-supporting sheet metal frame. Galvanised sheet metal panels, coated externally with thermal and acoustic insulation, internal high thickness galvanised sheet metal infill.
  • Polypropylene high efficiency cross flow counter current exchanger. Low freezing temperatures and operation down to -25°. Very high  exchange efficiency.
  • Brushless fans with electronic motor and modulating control. Very high efficiency and low noise levels.
  • ePM1 70/80% filters with low head loss. Easily removable in either horizontal or vertical positioning.
  • Free cooling inside the unit with generous air flow and damper with motorised actuator.
  • Electric panel complete with control board for 4 fan speeds, antifreeze, automatic bypass, temperature probes, post-heat coils and automatic dirty filter signal.
  • CH193VMC control panel mandatory for unit operation with capacitive touch for installation on 503 box.
  • Thanks to its construction features and components, ASPIRCOMFORT H is able to reach recovery efficiency of more than 90%.
  • In the winter and summer seasons there is considerable energy recovery of the renewal air introduced into the room.

Features

FEATURES
  • Type of Fans: Backward blade radial - directly-coupled electronic motor - 0/10 V signal
  • Number of Fans: 2
  • Air flow rate: 354 (m3/h)
  • Useful pressure: 100 (Pa)
  • Type of exchanger: Counter current plates - polypropylene
  • Number of Exchangers: 1
  • Recovery efficiency: 87.6%
  • Type of filters: Flat Filters
  • Filtration class: 70% (ePM1)
  • Sound power Lw generated by the structure: 64 dB(A)
  • Sound power Lw irradiated in the duct: 69 dB(A)
  • Average sound pressure Lp at 1m: 50.3 dB(A)
  • Average sound pressure Lp at 3m: 42.6 dB(A)
  • Power supply voltage: 230V / 1 / 50 Hz.
  • Absorbed current: 1.6 (A)
  • Power input: 170W
  • Protection rating: IP44
  • Width: 1350mm
  • Depth: 650mm
  • Height: 290mm
